Industrial diffusers

Product selection A-Z

Filter list

I

ISH

Q

QSH

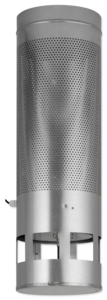

ISH

Impulse diffusers with horizontal air discharge in cooling mode

Nominal sizes 250, 355, 450, 560 mm
Volume flow rate range 205 – 1585 l/s or 738 – 5706 m³/h
Casing made of galvanised sheet steel
For variable and constant volume flows
Installation either free hanging or on walls or pillars
Large throw distance due to high discharge momentum
Discharge direction can be adjusted manually or with an actuator
Chain pull for adjusting the discharge direction manually

Optional equipment and accessories

Exposed diffuser parts in RAL CLASSIC colours
Electric and thermal actuators for adjusting the air discharge direction
Bowden cable for adjusting the discharge direction manually
Wall mount

QSH

Displacement flow diffusers with bell-shaped, low turbulence air discharge in cooling mode

Nominal sizes 250, 355, 450, 560 mm
Volume flow rate range 205 – 1570 l/s or 738 – 5652 m³/h
Casing made of galvanised sheet steel
For variable and constant volume flows
Installation either free hanging or on walls or pillars
Low-turbulence displacement ventilation
Discharge direction can be adjusted manually or with an actuator
Chain pull for adjusting the discharge direction manually

Optional equipment and accessories

Exposed diffuser parts in RAL CLASSIC colours
Electric and thermal actuators for adjusting the air discharge direction
Bowden cable for adjusting the discharge direction manually
Wall mount
