New system solutions, fascinating experiences, time for encounters and conversations!

TROX is bringing fresh air to Saudi Arabia! At the BIG 5 15th - 18th of February, 2025, we will showcase groundbreaking developments in system solutions, turning our vision into reality: safety, innovation, and sustainability – fresh air for everyone, everywhere.

Discover how TROX is shaping the future of ventilation technology. Visit us at the BIG 5 in Saudi!









AIR DIFFUSERS

X-GRILLE-MODULAR

Ventilation grilles

X-GRILLE-modular

VENTILATION GRILLES, MADE OF ALUMINIUM, WITH MODULAR CONSTRUCTION – ALSO FOR CONTINUOUS HORIZONTAL RUNS


Individual design and simple configuration with more than 3000 variants


    • Various designs allow installation from representative areas to warehouses
    • Quick and simple installation under normal structural conditions through 6 mounting variants
    • Air diffuser for supply and extract air with extensive dimensional variance
    • Mesh band installation possible through special end and middle sections
    • Can be combined with familiar TROX attachments
    • Simple replacement of existing TROX ventilation grilles due to identical dimensions of the installation openings
    • Design programme for technical sizing
    • Data sets for BIM-based project processing







AIR HANDLING UNITS

X-CUBE EX

X-CUBE Ex

ATEX - FOR WHEN DANGER IS IN THE AIR

THE AIR HANDLING UNIT WITH DUAL ATEX CERTIFICATION

Air handling units installed in areas with potentially explosive atmospheres have to comply with ATEX directive 2014/34/EU. Maximum safety – thanks to TROX air handling units for potentially explosive atmospheres:

  • Developed especially for zone 1 and zone 2 areas with potentially explosive atmospheres
  • Meet the requirements for groups IIA and IIB of flammable gases and vapours, and temperature classes T1 to T4
  • Configurable air handling units
  • Integral ATEX-compliant components


We manufacture our X-CUBE Ex units in compliance with ISO IEC 80079-34.

And we don't stop there: We also have conformity to our QM system tested and certified by an independent institute.

TROX is in fact the only manufacturer to offer this dual certification.

X-CUBE X1

X-CUBE X1

X-CUBE X1: STABLE AND SMART

IDEAL FOR SOLUTIONS UP TO 25,000 M³/H

    With the TROX X-CUBE, an air handling unit with unlimited configuration options, TROX sets a new standard in the AHU market and defines considerably higher levels of quality, performance, flexibility, reliability, energy efficiency, and hygiene. Compelling all down the line. TROX now offers everything from a single source: air handling units and components – ideally complementary to each other.

  • For even more energy efficiency and better quality with less coordination effort.
  • For the ventilation of rooms and entire buildings, for filtering, heating, and cooling the air, for heat recovery as well as for humidification and dehumidification, and for volume flow rates of up to 86,000 m³/h
  • Flexible frame construction, completely covered externally by thermally insulated panels or doors
  • Easy installation, maintenance and cleaning
  • Significantly reduced wiring workload due to flexible control and regulation based on fieldbus technology.
  • Special hygiene construction variant according to AHU Guideline 01 (RLT-Richtlinie 01) for use in hospitals and laboratories; weatherproof construction variant for outdoor installation

X-CUBE CONTROL

more

ADVANTAGES AT A GLANCE

  • Easy handling on the construction site

  • Minimal installation effort due to ready-to-plug-in modules
  • Integrated and expandable X-CUBE controls technology
  • Many functions can be freely parameterised without software knowledge
  • Customised adaptations programmable on request
  • TROX CLOUD for remote monitoring possible
  • Central BMS connection via BACnet IP or TCP/IP mode



Fast. Intuitive. Ready to go.

The latest version of the X-CUBE control scores particularly well in the time factor. It starts with the simple and standardised M12 connection between the modules, continues with the intelligent and easily accessible control cabinet architecture and ends with the smart and intuitively operated control panel. And cloud-based control of the components is also possible via a web connection.

Instead of complex star-shaped wiring, the modules are now connected via the integrated plug-in BUS wiring including 24 V power supply for the components. This means real Plug&Play according to industrial standards and an enormous reduction of commissioning times.


► Click here for the demo version! ►►
► Try the cloud version too! ►►







VAV TERMINAL UNITS

TVE

VAV TERMINAL UNIT

TVE

COMPACT SOLUTION FOR LOW AIRFLOW VELOCITIES

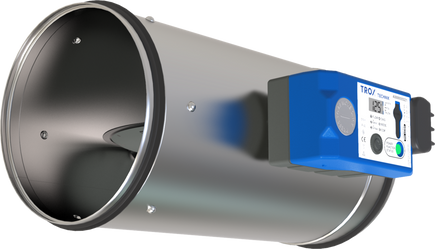

VAV terminal unit, variant TVE TVE_gc_01psd.png

    Circular air terminal units for variable air volume systems with low airflow velocities, suitable even with unfavourable upstream conditions

    • Effective pressure measurement not with a tube, but by means of the damper blade
    • Effective pressure transmission through effective pressure channel in the shaft
    • Terminals with protective cover, no junction box required
    • Any airflow direction if dynamic transducer is used
    • Suitable for airflow velocities of 0.5 – 13 m/s
    • Compact dimensions allow for use in restricted spaces
    • Plug-and-play solution in conjunction with X-AIRCONTROL room control
    • Exact measurement even with low airflow velocities
    • Any installation orientation even with static transducer
    • Closed blade air leakage to EN 1751, at least class 3
    • Casing air leakage to EN 1751, class C
    • Volume flow rate range 1:25







AIR WATER SYSTEMS

CHILLED BEAMS

CHILLED BEAMS

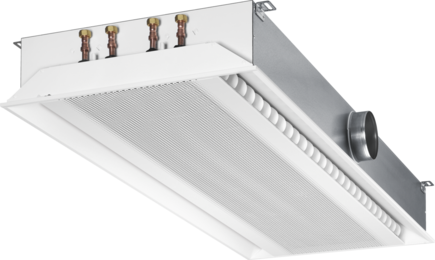

DID642 00225904_0


DID642

Active chilled beam for heating and cooling, with 2-pipe or 4-pipe heat exchanger, for integration with various ceiling systems Preferably for room heights up to 4.0 m

  • High heating and cooling capacity with a low conditioned primary air volume flow rate and low sound power level
  • Five nozzle variants to optimise induction based on demand, including adjustable twin nozzles, i.e. one pair of nozzles with different diameters
  • Hinged, removable induced air grille in two designs


Optional equipment and accessories

  • Control package
  • Additional casing for both supply air and extract air, or for additional supply air
  • Supply air and extract air units upon request
  • Adjustable air control blades for air direction control
  • Heat exchanger powder-coated black
  • Powder coating in many different colours, e.g. RAL CLASSIC
  • Adjustable air control blades for air direction control







AIR DIFFUSERS

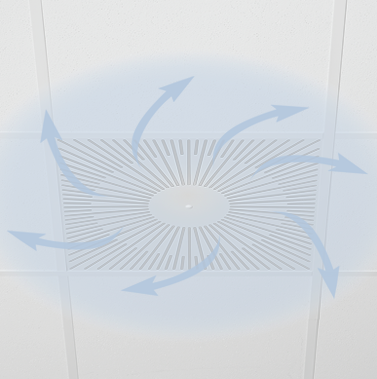

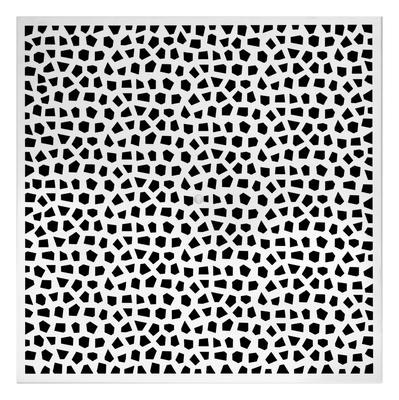

XARTO

XARTO

FOR MORE REFINED COMFORT ZONES WITH SPECIAL DEMANDS ON ARCHITECTURE AND DESIGN, WITH FIXED AIR CONTROL BLADES

    Circular and square ceiling swirl diffusers for high volume flow rates at low sound power levels and low differential pressure

    • Nominal sizes 600, 625
    • Volume flow rate range 31 – 265 l/s or 110 – 954 m³/h
    • Diffuser face made of galvanised sheet steel, powder-coated
    • For supply and extract air
    • For variable and constant volume flows
    • For all types of ceiling systems, and with an extended border also suitable for freely suspended installation
    • Swirl unit inside for the best swirl effect and high induction levels
    • Plenum box with acoustically optimised and lockable damper blade
    • Ideal for comfort zones







VENTILATION TECHNOLOGY

AXN 6_9_12/56

AXIAL FANS WITH DIRECT DRIVE AND OUTLET GUIDE VANES AXN 12/56

    • Extensive adjustments to the relevant operating point and subsequent motor rating corrections can be made by steplessly adjusting the impeller blades without any need to disassemble the impeller
    • Optimised outlet guide vanes to increase the pressure coefficients.
    • Low-noise operation due to low circumferential speeds caused by high pressure coefficients.
    • 21 sizes
    • Impeller's nominal Ø 250 to 2,500 mm
    • Volume flow rate V. max. 400,000 m3/h
    • Total pressure increase pt max. 2,600 Pa
    • M-D style: air direction with motor in outlet, with direct drive. Impeller assembled directly on the motor shaft
    • Can be installed horizontally and vertically in the building and outdoors.
    • Corrosion protection category up to C5M possible
    • Casing available in all RAL colours

AXN 12/56 00238595_0








EC FANS COIL UNIT

PWX

PWX

HORIZONTAL CHASSIS TYPE WATERSIDE FANCOILS FOR CONCEALED OR EXPOSED INSTALLATIONS

    • Nominal sizes 60, 90, 120, 150, 180 and 205
    • Volume flow rate range 50 - 636 l/s or 180 - 2289 m3/h
    • Casing manufactured with 1.2 mm galvanised steel with powder-coat finish
    • Condensate drip tray made of galvanised steel with powder-coat finish
    • Heat exchanger for cooling (2-pipe) or cooling and heating (4-pipe) systems
    • Easy filter change, no tools required
    • Access hatch with integrated hinge
    • Acoustically optimised EC/DC fans with low specific fan powers and variable supply air volume control (0-10v signal)


    Optional equipment and accessories

    • Integrated controls package
    • Inlet attenuator
    • Discharge attenuator
    • Inlet plenum
    • Electric heating
    • Circular or rectangular discharge connection







AIR DIFFUSERS

JET NOZZLE TJN

TJN

Acoustically and technically optimised, for installation in walls and on rectangular and circular ducts, adjustable – made of plastic

TJN TJN_img_08psd.png

TJN with swirl unit and cap for throw distance reduction





THE NEW TJN JET NOZZLE OFFERS IMPROVED ACOUSTIC CHARACTERISTICS AND IS ALSO MORE ENERGY-EFFICIENT


    • Nominal sizes: 160, 200, 250, 315 and 400 mm
    • Volume flow rate range 20 – 1000 l/s or 72 – 3600 m³/h
    • Visible parts made of high-grade polymer in white aluminium or pure white
    • Optimised nozzle contours
    • Discharge angle indication, discharge angle limiting and setting -30 – +30 on a concealed scale
    • Easy-to-remove face cover ring with bayonet fixing


Optional equipment and accessories


    • 5 nominal sizes, each with a circular spigot or, as an option, with a connection piece for circular or rectangular ducts
    • Swirl unit with acoustically optimised air control blades with unique saw tooth edges and cap for two-step reduction of the throw distance
    • External electric actuator of compact height
    • Electric actuator allows for integration with the central BMS
    • Internal thermal actuator with shape memory alloy for the self-powered adjustment of the discharge angle
    • All variants also available with outer casing

VDL

VDL

HIGH LEVEL CEILING INSTALLATIONS WITH ADJUSTABLE AIR CONTROL BLADES

Circular ceiling swirl diffusers, with manual or motorised adjustment of the air pattern to ensure draught-free ventilation of the occupied zone both in heating and cooling modes

  • Nominal sizes 315, 400, 630, 800
  • Volume flow rate range 65 – 1080 l/s or 234 – 3888 m³/h
  • Diffuser face made of galvanised, powder-coated sheet steel and of aluminium
  • For supply air
  • For variable and constant volume flows
  • High induction results in a rapid reduction of the temperature difference and airflow velocity
  • Discharge direction can be adjusted manually or with an actuator
  • Diffuser face with aerodynamically optimised contours
  • Ideal for high ceiling installations


Optional equipment and accessories

  • Exposed diffuser face available in RAL CLASSIC colours
  • Horizontal or vertical duct connection
  • An extended border improves the horizontal air discharge in cooling mode
  • Protective cage for use in gymnasiums
  • Actuators for adjusting the air discharge direction
  • Diffuser face can be removed from the room side
VDL 00132524_0


LINEAR CEILING DIFFUSERS TYPE LDD / LDDL

Linear ceiling diffusers type LDD / LDDL

LINEAR CEILING DIFFUSER - TYPE LDD

    The linear ceiling diffusers with one or two-sided discharge are especially suitable for air supply through ceilings.

    They distribute the air along the ceiling and can be used in very low rooms.

    The linear ceiling diffusers feature excellent induction. Mixing of the air jets with the room air and thus the heat exchange begin in the immediate neighbourhood of the diffuser. Therefore, warmer and particularly colder air can be supplied without draft effects.


BALL DIFFUSER RAIL - TYPE KS

BALL DIFFUSER RAIL - TYPE KS

BALL DIFFUSER RAIL - TYPE KS

Ball diffuser rails are supply air elements, which can be incorporated into ceilings especially aesthetically.
They are suitable for air conditioning systems in open-plan offices, class rooms, laboratories, booking halls...
The adjustment possibilities for the individual ball jets are well-nigh unlimited, because they can be set to blow in any desired direction.
The ball rails can be supplied in single or double-row versions.







TUNNEL DAMPER

FOR THE VENTILATION OF AND SMOKE EXTRACT FROM UNDERGROUND TRANSPORT SYSTEMS

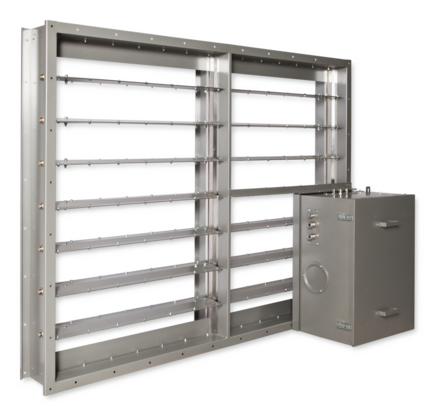

Tunnel damper Type JFM 00150000_0

TUNNEL DAMPER

    Tunnel dampers are safety components specially designed for underground transport systems and meet the requirements of the German Guideline for the Equipping and Operation of Roadway Tunnels (Richtlinie für die Ausstattung und den Betrieb von Straßentunneln, RABT) and of the Austrian Guidelines and Provisions for Road Traffic (Richtlinien und Vorschriften für das Straßenwesen, RVS)

    • Certified construction and production according to ISO 9001
    • Temperature resistance of 120 minutes at 400 °C
    • Excellent low leakage performance even at high pressure
    • Galvanised steel, powder-coated, or stainless steel construction
    • Side seals made of sprung stainless steel compensate for the longitudinal expansion of the blades at high temperatures
    • Parallel or opposed action blades
    • Low pressure drop due to aerofoil blades
    • With electric actuators encased in thermally insulated protective enclosures







MARINE DAMPER

JFD

TROX Type ‘JFD’ Damper multi-leaf Marine Fire and Gas Damper is designed for marine and offshore applications.
The damper is certified by Lloyd’s Register and ABS for the compliance with IMO Fire Test Procedures Code, Annex 1; Part 3.
The damper is also certified by Lloyd’s Register for compliance with the essential Fire protection requirements of the EU Marine Equipment Directive (MED) 96/98/EC.
The damper is certified for horizontal or vertical mounting in ‘A-0’ divisions, and ‘A-15’, ‘A-30’ and ‘A-60’ divisions when suitably insulated.
The damper is also certified for use in Zone 1 and 2 hazardous areas and complies with EU Directive 94/9/EG (ATEX 95), Appendix 1 and is classified under equipment group II, category 2G. In accordance with EU Directive 99/92/EC (ATEX 137), the damper can be used in potentially explosive environment where gas Groups IIA, IIB and IIC, and flammable materials at temperature classes T1 to T6 are present.
The maximum recommended operating pressure for this damper is 3000 Pa.







FILTER TECHNOLOGY

TFM

TFM

LAMINAR FLOW FILTER MODULE

For critical air cleanliness and critical hygiene requirements, suitable for ceiling installation

Use in laboratories, medical areas, or production rooms in the pharmaceutical and food industries.

  • Individual casings can be combined modularly to form ceiling tiles
  • Easy, time-saving, and secure filter change due to special press-in frame
  • For mounting filters with flat or fluid seal
  • With sealing integrity test facility for filter elements
  • Integrated differential pressure measuring points
  • Internal measuring tube to sample particles for measurement
  • Spigot with lip seal
  • Flexible suspension
  • For air cleanliness classes 5 to 8 according to ISO 14644-1
  • Meets the hygiene requirements of VDI 6022
  • Leakage classes: L1 according to DIN EN 1886 and D according to DIN EN 15727








FLOOR DIFFUSERS

STAINLESS STEEL GRILLE

AF / AH

AF / AH

AF-0-A/825×225 00136095_0


VENTILATION GRILLES, MADE OF ALUMINIUM, WITH FIXED LONGITUDINAL BLADES, FOR FLOOR INSTALLATION – ALSO FOR HORIZONTAL RUNS

  • Floor grilles with fixed longitudinal blades
  • Grille face made of aluminium with anodised finish
  • Front border suitable for floor installation without an installation subframe
  • Removable grille core with special spring clip fixing
  • Volume flow rate range 10 – 1235 l/s or 36 – 4446 m³/h

AFG

AFG

  • Heavy / extra heavy duty floor grilles, made of aluminium, with fixed horizontal blades
  • Single ventilation grilles suitable for raised access floor systems
  • Nominal size 600 x 600
  • Volume flow rate range 0 - 530 l/s or 0 - 1908 m3/h
  • Grille face made of aluminium with powder-coat finish
  • Front border, 6mm with 6mm wide bla des
  • Suitable for floor tile depths between 25mm and 50mm







ORION X-SENSE

APPLICATION: Orion X-sense is a sensor box where both motion detection PIR and temperature measurement are in one and the same unit. X-sense is permanently mounted in the center of the Orion Leaf valve front. Because the room sensors are integrated in the ceiling valve, unnecessary wiring down the wall can be avoided, i.e. all connections can be made above the ceiling. Orion X-sense is adapted to Orion-Løv valve fronts and to the X-AIRCONTROL automatic system. Orion X-sense provides accurate measurements with a supply air temperature of 14-26°C.

EXECUTION
  • Customized, assembled and delivered complete in roof valve.
  • Modern and coordinated design adapted to Orion-Løv valve front.
  • For use with the X-AIRCONTROL room control system.
  • Easy connection, with only one RJ12 cable that clicks into the X-AIRCONTROL zone module.
  • With temperature sensor PT1000 that senses the room temperature and sends a signal to a room controller that controls the right amount of air.
  • With motion sensor PIR that detects presence in the room and regulates the required airflow accordingly.

TLK

TLK

  • Different front options

  • Chamber with damper and measuring outlet
  • Removable front plate
  • Adjustable mounting frame
  • Polyester sound absorber in chamber

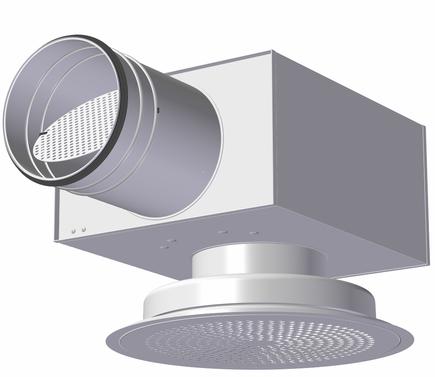

LØV-R

LØV-R

  • Design-protected LØV perforation

  • Withstands high sub-zero temperatures
  • Flat mounting
  • Removable front plate
  • Documented with Luna plenum chamber
  • Polyester sound absorber in chamber








VAV TERMINAL UNITS

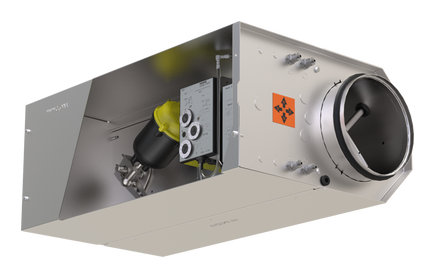

TVR-EX

VAV terminal units

TVR-EX

For the control of variable air volume flows in potentially explosive atmospheres (ATEX)


CIRCULAR VAV TERMINAL UNITS FOR VARIABLE AIR VOLUME SYSTEMS, APPROVED AND CERTIFIED FOR POTENTIALLY EXPLOSIVE ATMOSPHERES (ATEX)


    • ATEX-compliant construction and parts
    • Approved for all gases, mists and vapours in zones 1 and 2, with electronic control additionally for dusts in zones 21 and 22
    • Suitable for the control of supply or extract air as well as for differential pressure control
    • Electronic or pneumatic control components
    • Closed blade air leakage to EN 1751, up to class 4
    • Casing air leakage to EN 1751, class C







LINEAR DIFFUSERS

DUL

DUL

Long throw linear nozzles, specifically designed for areas where the air flow is excessive for a linear diffuser, with high throw and where high induction capacity is required.

The DUL nozzles can be positioned at an angle of 30°, which allows to adapt the vein orientation to any situation.

The connection plenums can be defined with different connection sockets in diameter and quantity to suit the acoustic and pressure drop requirements of the installation.

Connections:

  • Standard 200 mm connection socket, one per plenum.
  • Optional 150, 220 and 250 mm sockets.
  • Possibility of incorporating two sockets in the plenum box.


DUL_det

SLOT DIFFUSERS

SLOT DIFFUSERS

The clean solution!

    Unobtrusive

    The PURELINE slot diffusers are neat devices that blend in perfectly with any ceiling.

    Versatile
    Adjustable air discharge – horizontal, angled or even vertical – makes the diffusers a versatile option for many applications, such as to provide an air curtain to protect fresh food counters.

    Clean
    As a big plus, there is less contamination of the ceiling with the PURELINE slot diffusers. This has been tested on a dedicated test rig of RWTH Aachen University, where a standard dust (ASHRAE) was used to compare the contamination caused by different types of diffusers. PURELINE came out as the cleanest slot diffuser by far.








STAY UP TO DATE WITH OUR SOCIAL MEDIA CHANNELS

Contact Icon

Contact Us

Name: Muhammed Sharkas

Sales Development Manager Saudi Arabia

Phone: +966114920202

Email: muhammed sharkas@troxgroup.com

Email: info-me@troxgroup.com


production {"X-Frame-Options"=>"SAMEORIGIN", "X-XSS-Protection"=>"1; mode=block", "X-Content-Type-Options"=>"nosniff", "X-Download-Options"=>"noopen", "X-Permitted-Cross-Domain-Policies"=>"none", "Referrer-Policy"=>"strict-origin-when-cross-origin", "Strict-Transport-Security"=>"max-age=31536000; includeSubDomains", "Content-Type"=>"text/html; charset=utf-8"}

Share page

Recommend this page

Recommend this page by sending a link by mail.

Fields marked with an (*) are required fields.

Share page

Thank you for your recommendation!

Your recommendation has been sent and should arrive shortly.

Contact

We are here for you

Please specify your message and type of request.
Tel.: +971 4 3417448 | Fax: +971 4 3417449

Fields marked with an (*) are required fields.

Contact

Thank you for your message!

Your message is send and will be processed shortly.
Our department for Service-Requests will contact you asap.
For general question regarding products or services you can also call:
Tel.: +971 4 3417448 | Fax: +971 4 3417449

Contact

We are here for you

Please specify your message and type of request.
Tel.: +971 4 3417448 | Fax: +971 4 3417449

Attachment (max. 10MB)

Fields marked with an (*) are required fields.

Contact

Thank you for your message!

Your message is send and will be processed shortly.
Our department for Service-Requests will contact you asap.
For general question regarding products or services you can also call:
Tel.: +971 4 3417448 | Fax: +971 4 3417449
